QTJ4-25 Block Machine

We are providing the block machines. Which is China CMAX brand !

Category: Tag:
Block stacker 1set The stacker is used to lift the finished blocks from the block receiver and stack 4-5 layers, then use manual forklift to take it to the maintenance area
JS500pan mixer
Capacity:400-600L
Power:7.5KW
Weight:600KG
mixing tank steel thickness:8mm-10mm
Belt conveyor
6m
1200 mm x 800 mm
Weight: 450KG
Power: 2.2KW
PLC controller cabinet
（automatic）
This machine have raw material feeder system and pallet feeder system,it will increase the production capacity
Trolleys( 2pis. 4pcs 3KW vibration motor is working together , the vibration force is 120KN, so the blocks are very high strength
Solid Mould
Size: 240*115*53 mm
(25,200-30,240) pcs per 8hours
Qty/mould: 21 pcs
1set Our mould use Chinese standard steel of Q235, the biggest steel thickness of mould is 16mm, every 15,0000-20,0000times will wear 1mm.
Our mould use Chinese standard steel of Q235, the biggest steel thickness of mould is 16mm, every 15,0000-20,0000times will wear 1mm.

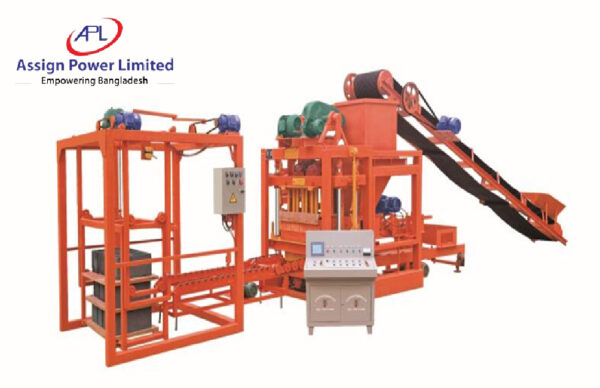

QTJ4-25 block machine
PLC controller will save worker labor force and guarantee production efficiency, so long as it have enough raw material and pallets, it will always work
